B-WARE Riot MRR 75 | Uprights

PLEASE NOTE: – B-WARE: PRODUCT HAS MINOR SCRATCHES, BUT IS IN OTHERWISE PERFECT WORKING CONDITION.

Build Your Ultimate Lifting Station

The Riot Modular Rack Range is your gateway to a personalized training experience in powerlifting and strength sports. The 75mm x 75mm sturdy base components are perfect for commercial gyms or your own private dungeon. With a selection of separate components like uprights, crossbeams, spotter arms, various pull-up solutions and many more, you can create a training station that aligns perfectly with your strength training ambitions.

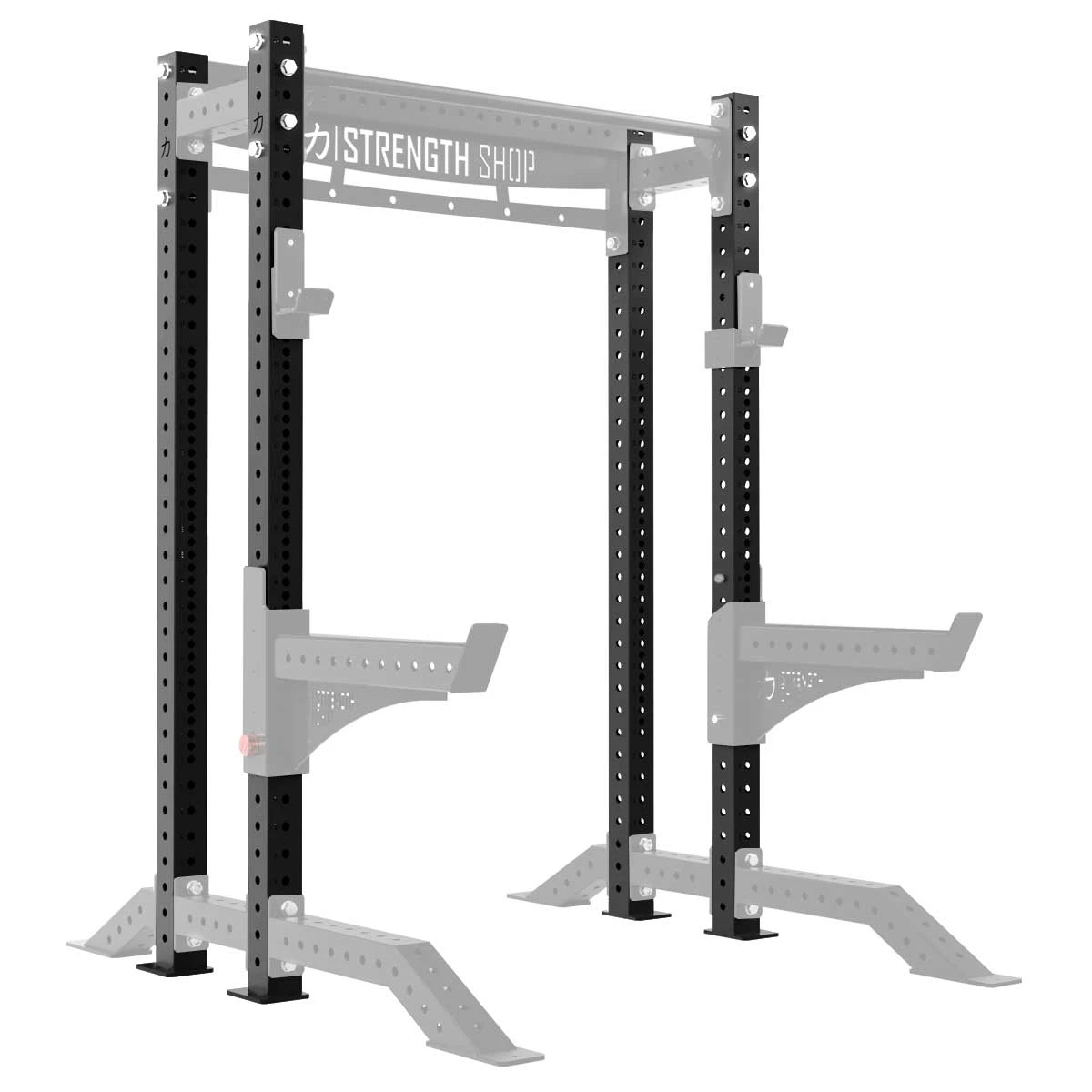

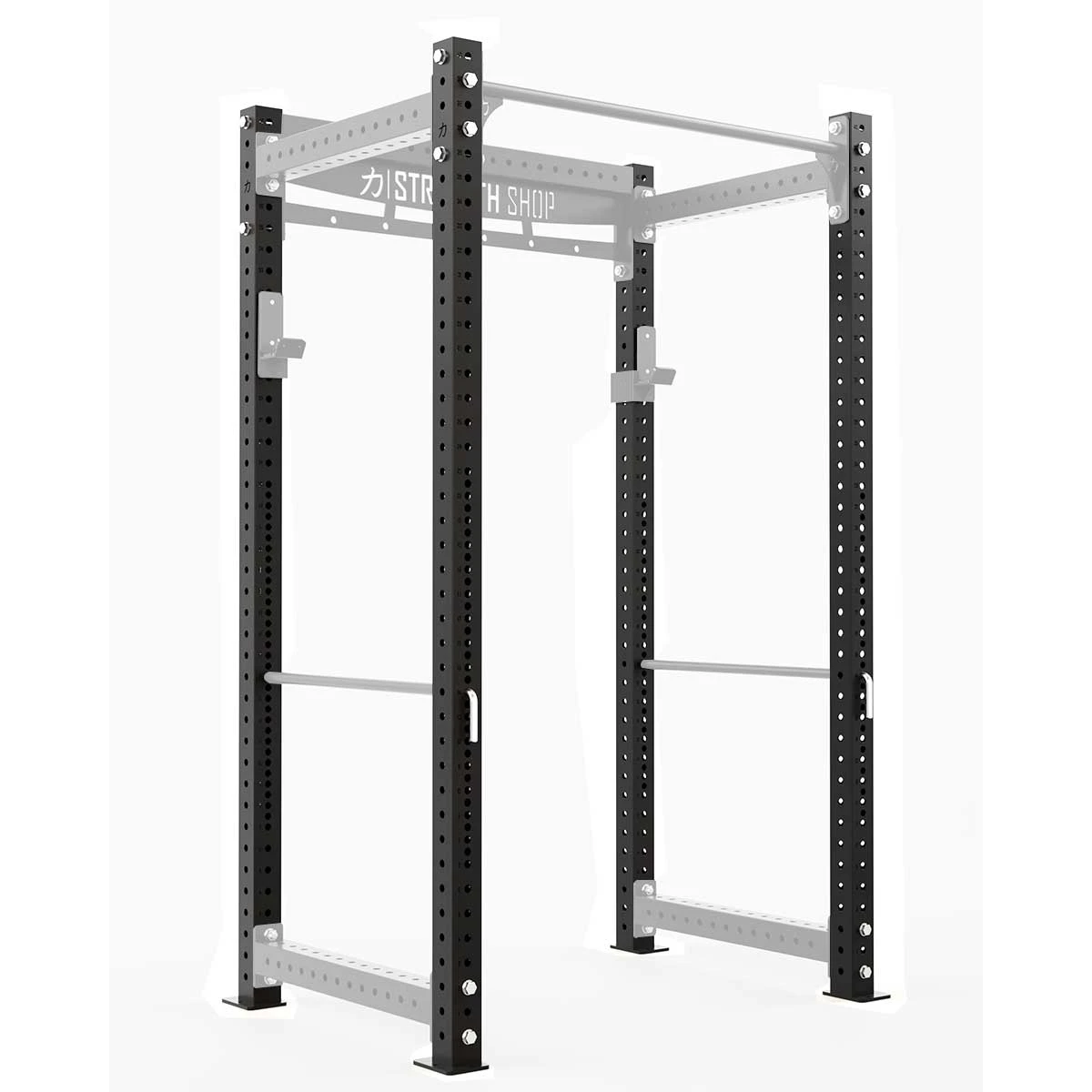

→ Select the base height of your cage here. You can choose from four different variants of posts/uprights that determine the height of your cage. In addition to heights of 2.3 and 2.1 metres, you can also put together a variant for low ceilings with the garage posts or build a semi-open variant.

Specs

• Material: 75mm x 75mm square tube, 3mm wall thickness
• Finish: black powder-coated
• Compatibility: only with Riot and Rig series

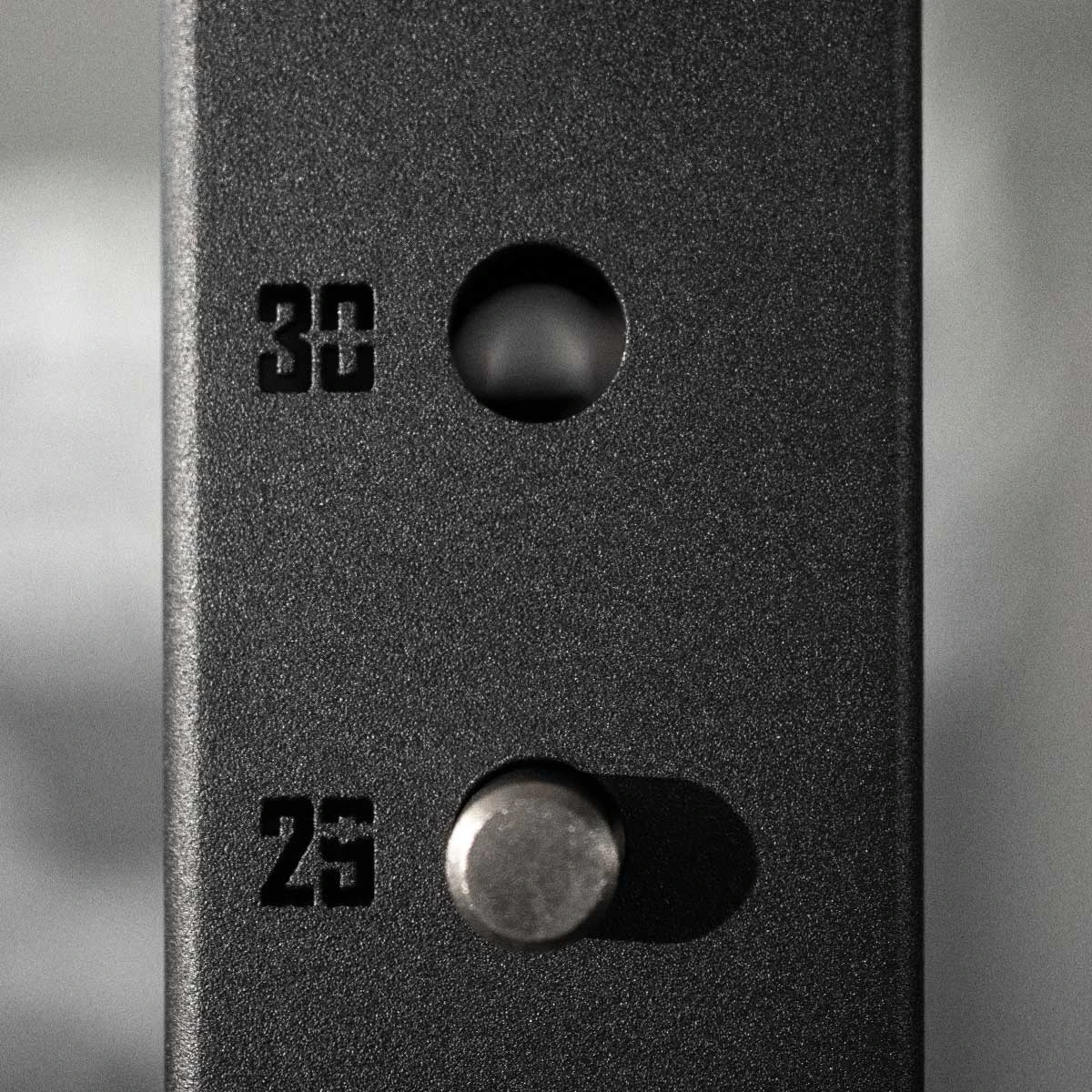

• Laser-cut numbering on the front and back

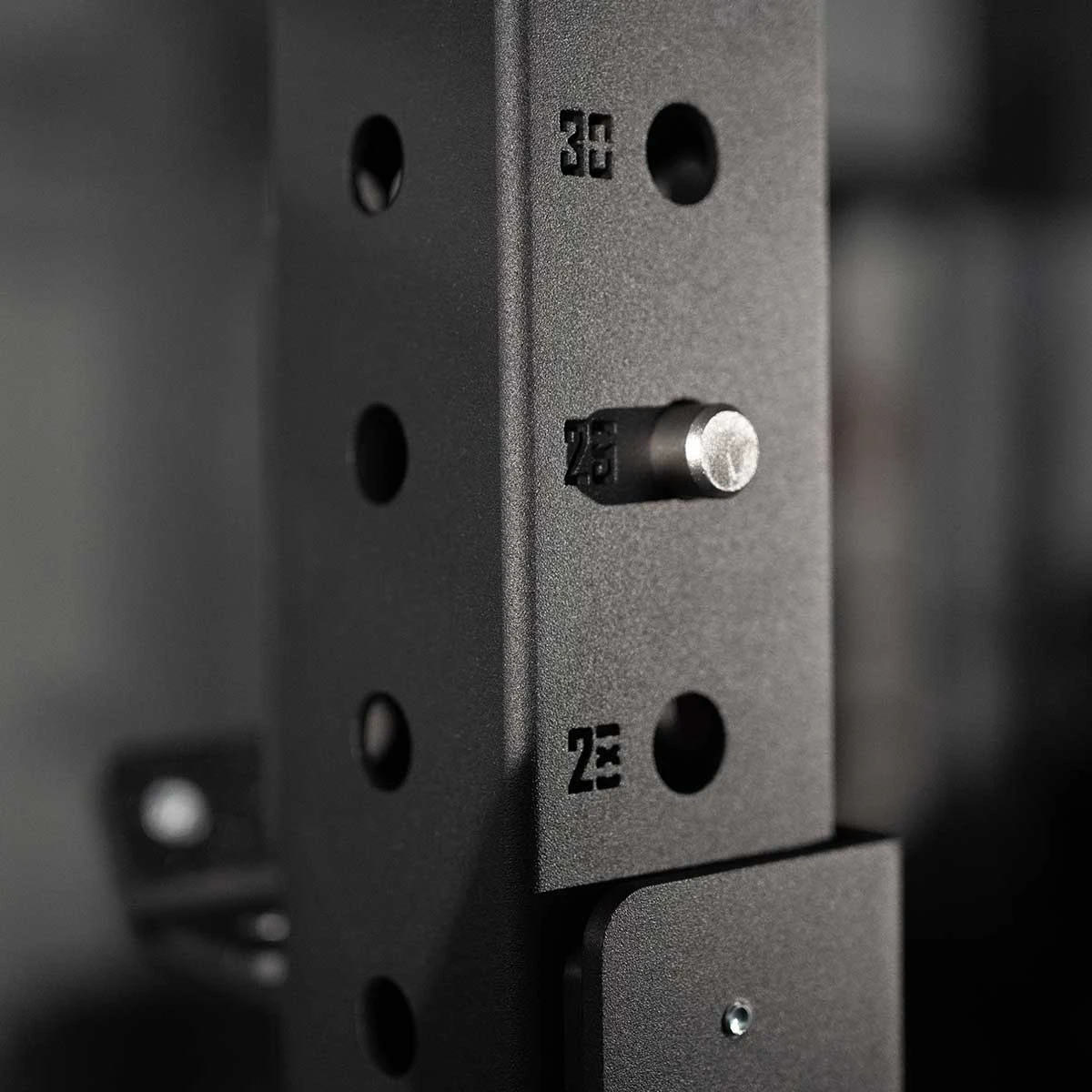

• 17mm pinholes, 50mm centre-to-centre spacing.
• 25mm centre-to-centre spacing for ‘Westside’ hole pattern 7-23 (418-1218mm from the floor). Front and back only.
• Sold as a pair

Details of the footplate:

• 105mm x 135mm x 8mm – offset to maximize open space in the rack
• 3x 10mm holes for floor mounting

Dimensions of individual posts (HxWxD / mm):

• 2.3m: 2300 x 105 x 135
• 2.1m: 2100 x 105 x 135

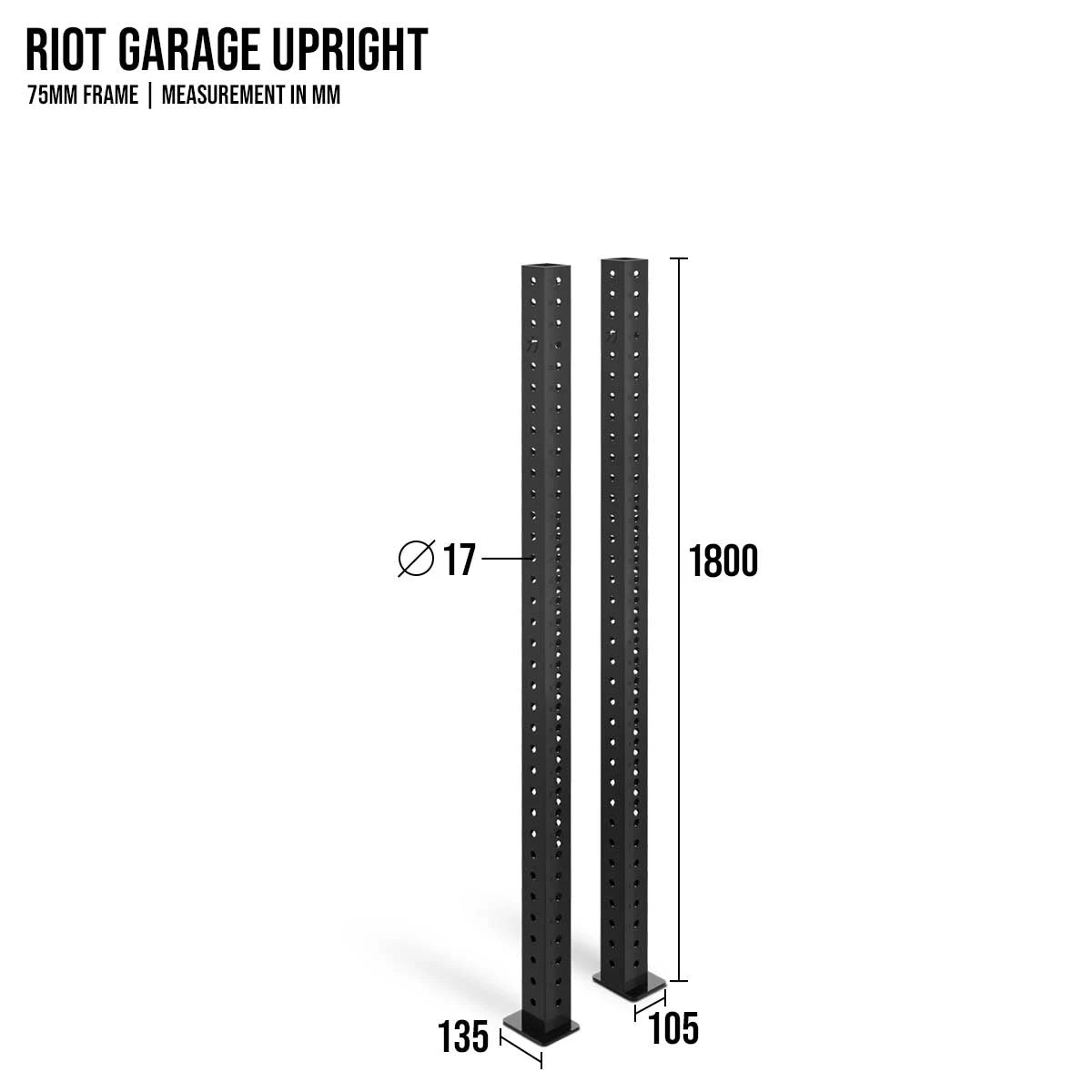

• Garage: 1800 x 105 x 135
• Open Upright: 1250 x 105 x 135



📄 Download Instructions Standard Racks (PDF)
📄 Download Instructions Half Racks (PDF)
